Track performance with sport tyre setup for streetlegal sports cars. 3-way adjustable dampers, separately
and independently for rebound and compression damping in high and low speed.
Track performance with sport tyre setup for streetlegal sports cars. 3-way adjustable dampers, separately and independently for rebound and compression damping in high and low speed.
Lowering FA/RA:
Maximum lowering due to technical aspects in order to reduce center of gravity.
Application:
Nüburgring Nordschleife and circuits Trackdays, customer rides, race track training Slalom.
Damping version:
Separately and independent damping force adjustment for rebound and compression damping in low- and highspeed. Basic setup with factory pre-set adjustment range in +/- direction. Rebound damping: comfortable adjustment with 16 exact clicks. Lowspeed compression damping with 6 exact clicks. Highspeed compression damping with 14 exact clicks.
Notes:
With adjustable aluminium top mounts. McPherson coilover struts: Stainless steel technology inox-line, coilover struts in aluminium.
Delivery content:

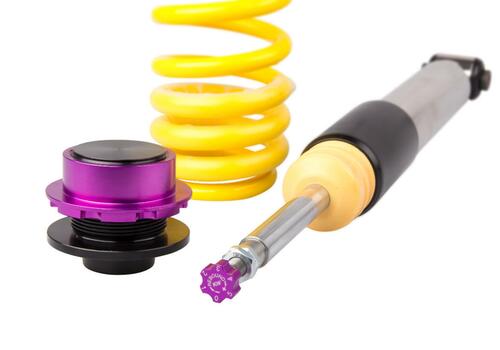

Set FA coilover struts incl. top mounts, RA springs with height adjustment + dampers.

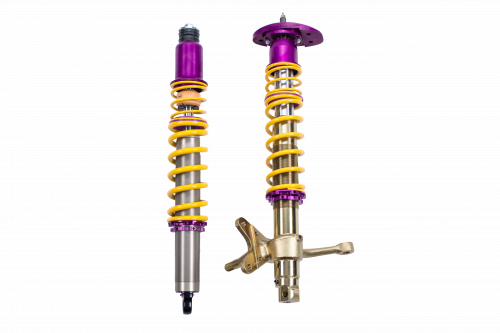

Technical information of KW Coilover kit Clubsport 3-way incl. top mounts
Damping adjustment:
rebound and compression damping
Adjustment FA/RA:
Thread/Thread
Axle Load FA/RA:
-825/-1250
Year of Prod.:
07/2004-
Notes:

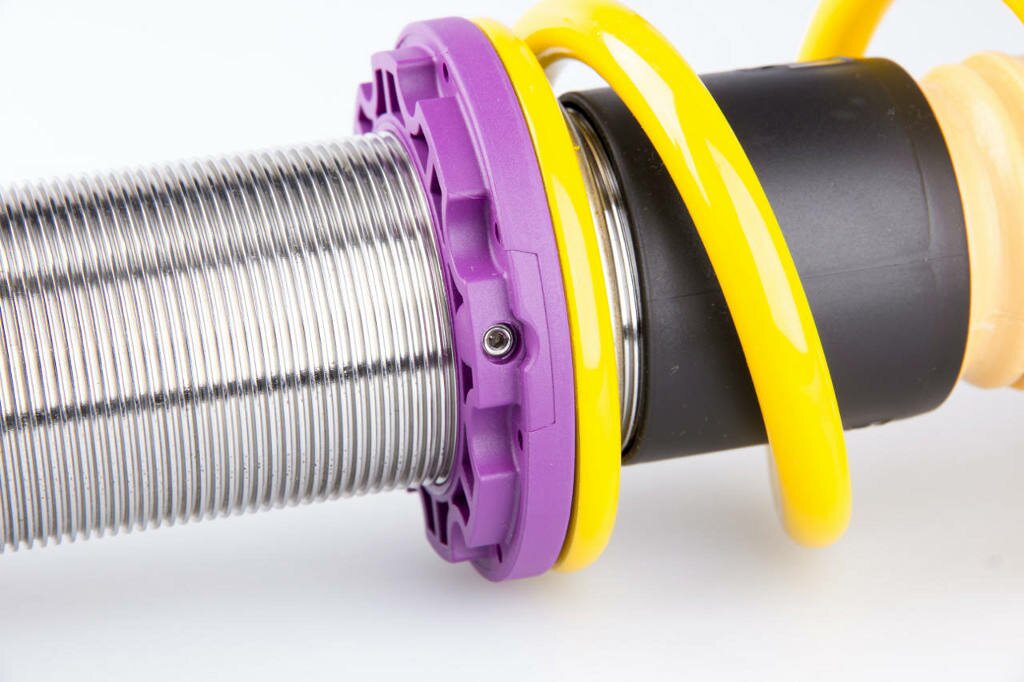

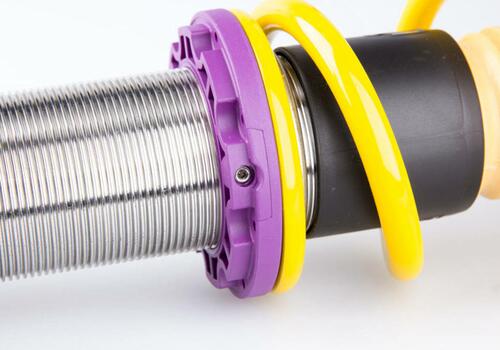

Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers)
For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list

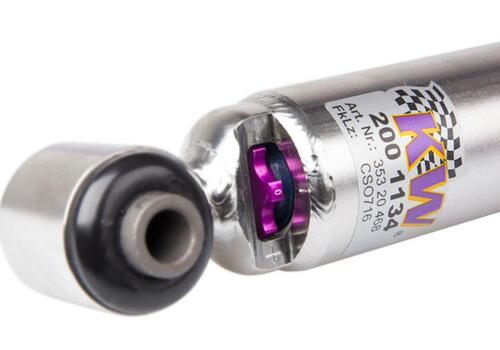

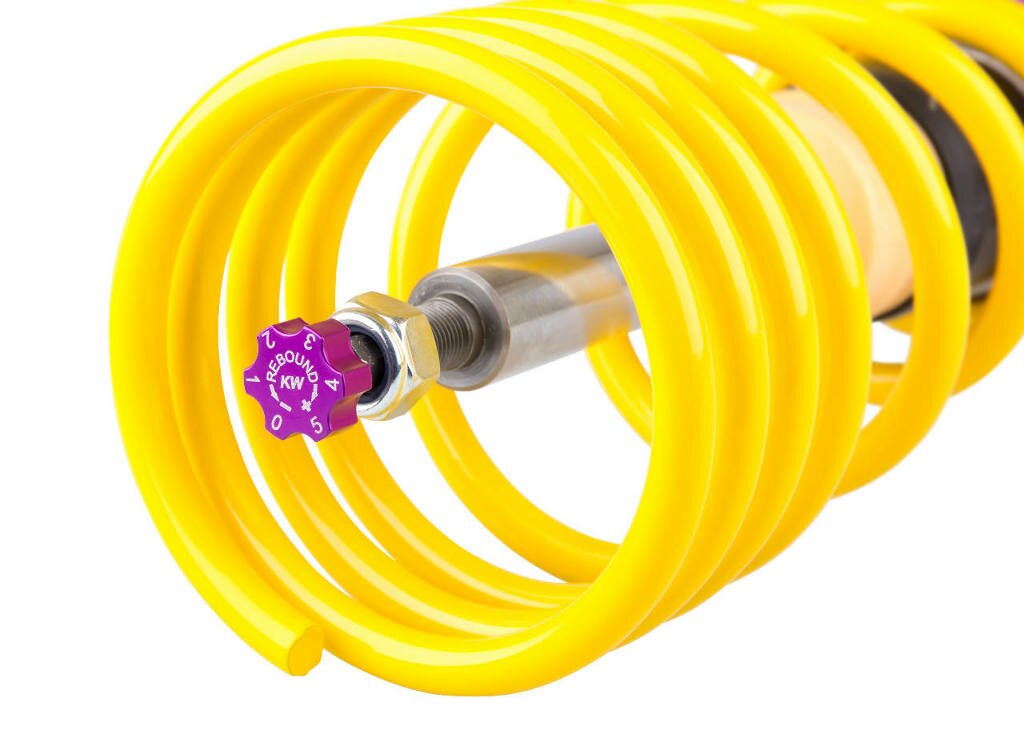

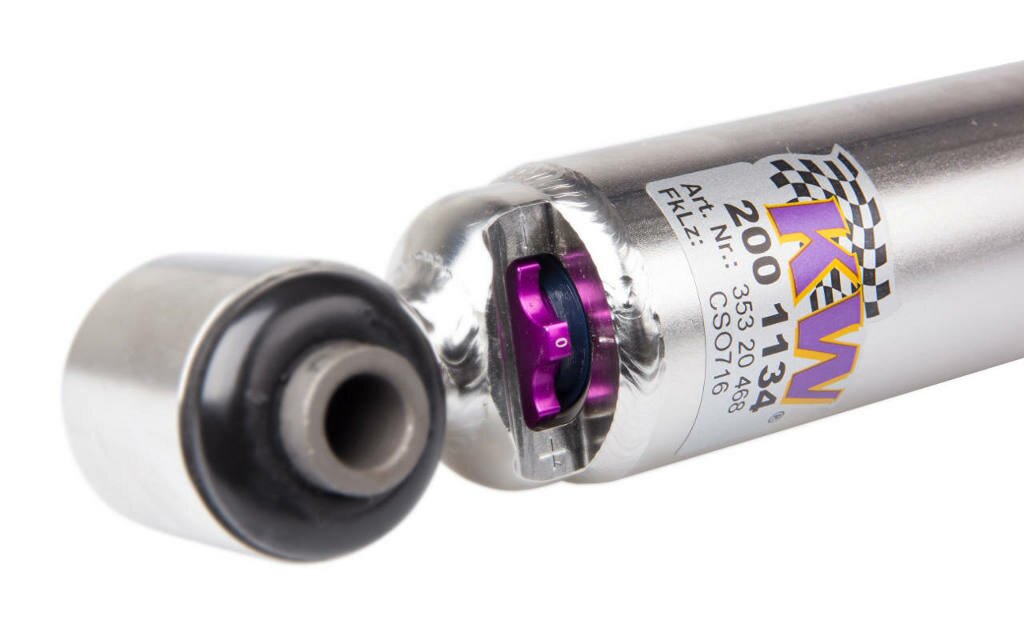

Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
Clubsport coilover with top mount: only with front axle top mount available
