The KW height adjustable spring kit is used for lowering of the vehicle in combination with the standard dampers. Unlike to conventional spring kits, a customized height adjustment is possible within the tested adjustment range. For this solution, vehicle-specific spring seats with adapted KW lowering springs and matching elastomers as well as dust protection systems are used. The standard damper system for example with electronic or hydraulic control, continues to remain active.
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the cars bodyroll during compression as well as improving agility when driving fast.
Designed in conjunction with KW Germany, ST X coilovers deliver a sporty handling by reducing the cars bodyroll during compression as well as improving agility when driving fast.

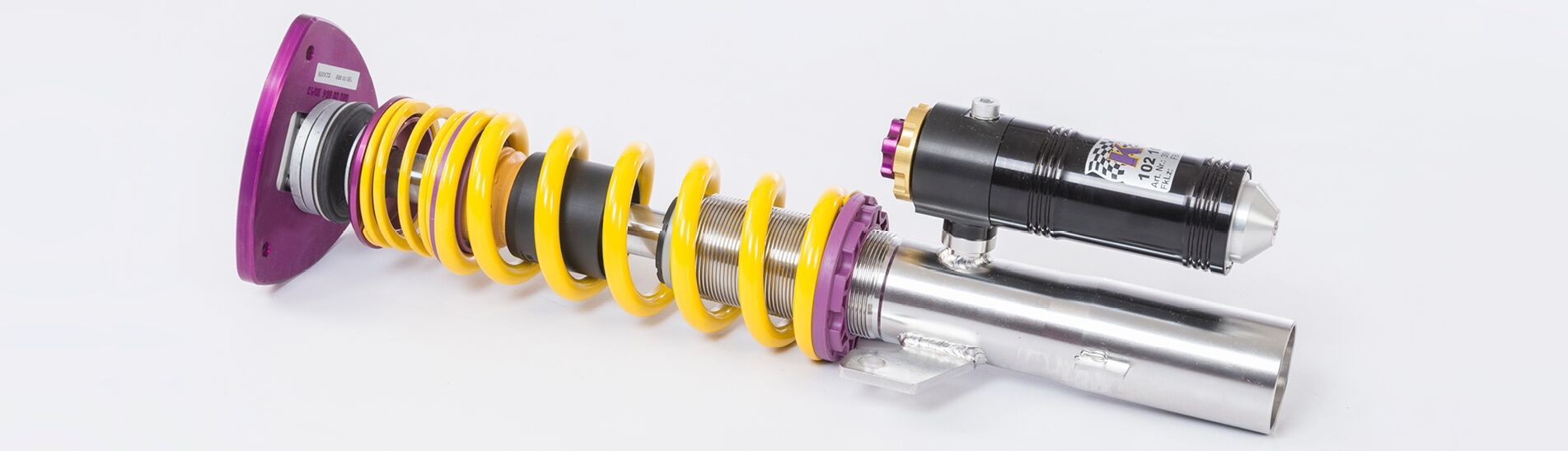

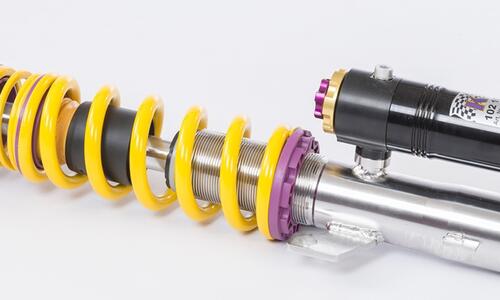

Track performance with sport tyre setup for streetlegal sports cars. 3-way adjustable dampers, separately
and independently for rebound and compression damping in high and low speed.
Track performance with sport tyre setup for streetlegal sports cars. 3-way adjustable dampers, separately
and independently for rebound and compression damping in high and low speed.
The full driving behaviour of your car can be adjusted using KW damper technology along with an adjustable aluminium uniball top mount for fine-tuning of the camber and caster!
The full driving behaviour of your car can be adjusted using KW damper technology along with an adjustable aluminium uniball top mount for fine-tuning of the camber and caster!
For the installation of systems D1, D2, DZ and DZX we recommend ST wheel bolts in black or silver. Note that the length of the bolts depends on the thickness of the selected wheel spacer. In addition the type of screw seat and thread must be considered.
Important note! Minimum thread engagement must be considered:
M12x1,25 at least 8,0 turns
M12x1,5 at least 6,5 turns
M12x1,75 at least 6,5 turns
M14x1,25 at least 9,0 turns
M14x1,5 at least 7,5 turns
1/2 at least 8,0 turns
Caution: Wheel bolts that are too long may cause damage at the axle components!
ST DZX Wheel Spacers allow you to widen the track width in precise 2.5mm increments of 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 40 mm, 45 mm and 50 mm per axle (5 mm, 7.5 mm, 10 mm, 12.5 mm, 15 mm, 20 mm, 22.5 mm or 25 mm per wheel).
Patented adapter system.
